-12%

ASROCK B560M-HDV 10TH AND 11TH GEN MICRO ATX MOTHERBOARD…G-Express BD Price

৳ 9,500

Key Features

Model: B560M-HDV
Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors
Supports DDR4 5000MHz (OC)
Graphics Output: HDMI, DVI-D, D-Sub
7.1 CH HD Audio, Intel Gigabit LAN
Stock:In Stock
Brand:ASRock

Categories: ASRock, Motherboard

Description
Reviews (0)

SPECIFICATION

MOTHERBOARD
Supported CPU	Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200) Digi Power design 6 Power Phase design Supports Intel Turbo Boost Max 3.0 Technology
Chipset	Intel B560
Memory	Dual-Channel DDR4 Memory Technology 2 x DDR4 DIMM Slots 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 5000+(OC) 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4600+(OC) Supports ECC UDIMM memory modules (operate in non-ECC mode) Max. the capacity of system memory: 64GB Supports Intel Extreme Memory Profile (XMP) 2.0
Graphics	11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics -Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built-In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc Three graphics output options: D-Sub, DVI-D, and HDMI Supports Triple Monitor Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC, and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) Supports HDCP 2.3 with DVI-D and HDMI 2.0 Ports
Slots	11th Gen Intel Core Processors 1 x PCI Express 4.0 x16 Slot 10th Gen Intel Core Processors 1 x PCI Express 3.0 x16 Slot 2 x PCI Express 3.0 x1 Slots
Supported Storage	4 x SATA3 6.0 Gb/s Connectors, support Intel Rapid Storage Technology 18, NCQ, AHCI, and Hot Plug 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel Core processors only) 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/
LAN	Gigabit LAN 10/100/1000 Mb/s Giga PHY Intel I219V Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec) Supports Surge Protection
Internal I/O Ports	COM Port Header 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
External I/O Ports	1 x PS/2 Mouse/Keyboard Port 1 x D-Sub port 1 x DVI-D port 1 x HDMI Port 2 x USB 2.0 Ports (Supports ESD Protection) 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone
DIMENSIONS	9.6-in x 7.8-in, 24.4 cm x 19.8 cm
Form Factor	Micro ATX Form Factor
BIOS	128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake-up events SMBIOS 2.7 Support CPU Core/Cache, GT, DRAM, VPPM, VCCIN_AUX, VCCST, VCCSA Voltage Multi-adjustment
Warranty	3 Years Warranty

DESCRIPTION

ASRock B560M-HDV Micro ATX Motherboard in Bangladesh

The ASRock B560M-HDV delivers unbeatable durability and stunning aesthetics. Built with the most demanding specs and features, the Steel Legend aims at both daily users and seasoned PC enthusiasts. Utilize a strong array of materials and components to ensure stable and reliable performance. Built for Intel Core processors, the B560M also supports DDR4 5000MHz (OC) memory. Enjoy your custom light show with ASRock Polychrome RGB and get connected and synced to various LED RGB devices. The durability and protection systems the B560M offers include a full Coverage M.2 heatsink which improves heat dissipation, also for durability there are Solid Steel PCIe Slots that provide support for PCIe components and prevent shearing. Get super fast and reliable connections with the new Dual USB 3.2 Gen2 ports to support your next-generation devices.

PCIe 4.0

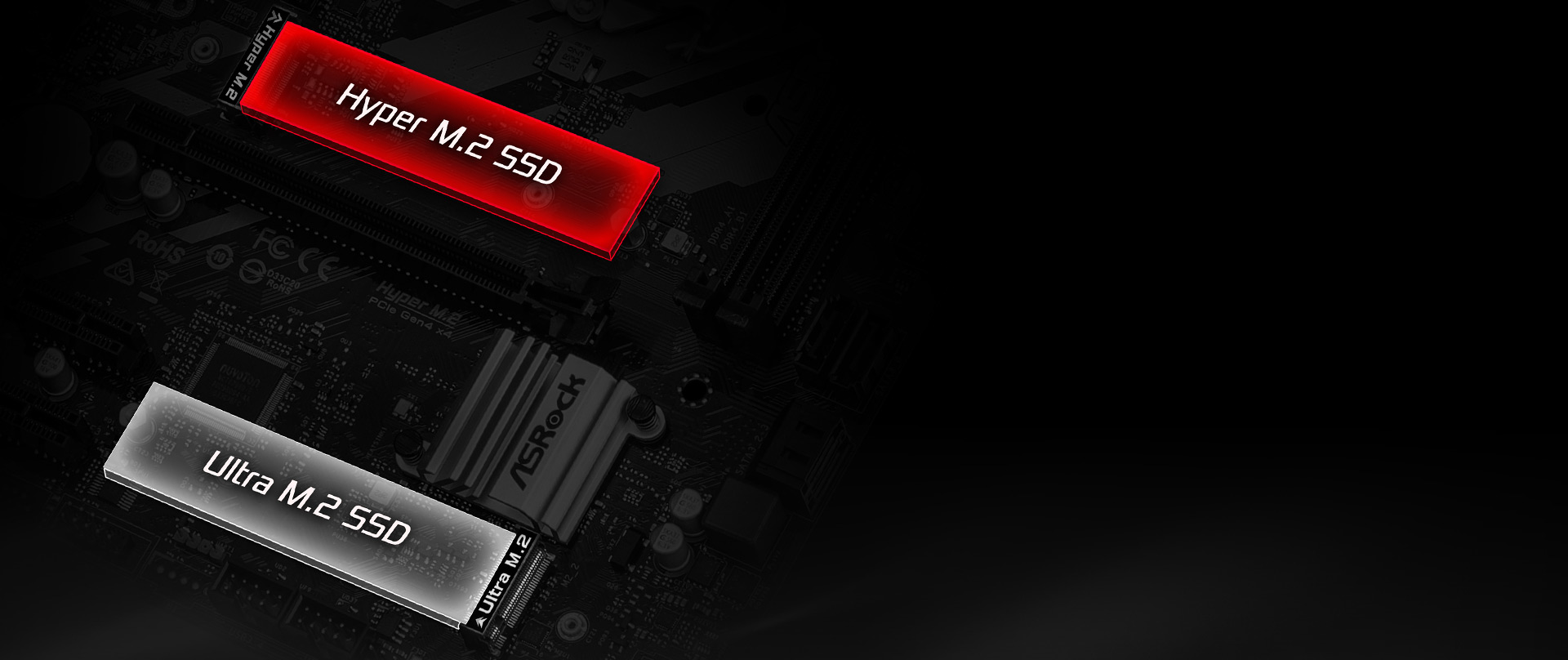

ASRock B560M-HDV motherboard is capable of accommodating multiple M.2 storage devices, one among which may even support next-generation PCI Express 4.0 M.2 SSD, ASRock B560M-HDV’s capable of performing twice the speed compared to the previous 3rd generation, giving a lightning-fast data transferring experience
